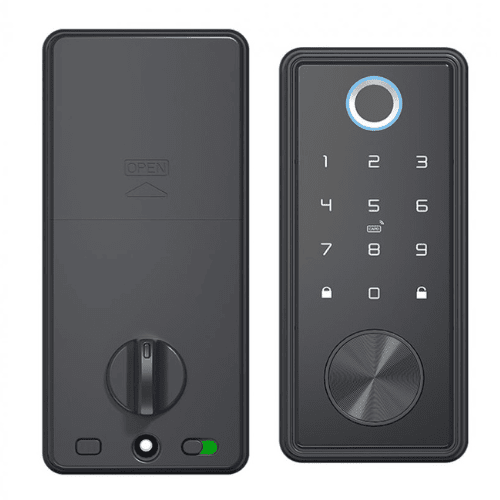

McGrath X3 Smart Deadbolt
The X3 is an advanced smart deadbolt from McGrath Locks, designed for easy installation and robust security. Powered by four AA Duracell batteries, it offers up to 12 months of operation, accommodating up to 10 daily uses. The ML-X3 fits standard door preps, including a 54mm hole and adjustable 60mm/70mm backsets. It works with door thicknesses from 35mm to 50mm and integrates seamlessly with the TT Lock app, supporting E-keys, PIN codes, RFID cards, and fingerprints. The lock can also be Wi-Fi enabled with the G2 gateway for remote access. It boasts a durable design, withstanding temperatures from -20℃ to 70℃ and offering IP65-rated protection.
For Professional Installation Service recommendations check out the terms and conditions.
Choose Quantity
The X3 is a smart deadbolt that enhances the McGrath Locks product line. Powered by 4 AA Duracell batteries, it can operate for up to 12 months with typical usage of 10 openings per day. The ML-X3 is easy to install, fitting a 54mm hole or retrofitting into an existing keyed deadbolt. It comes with an adjustable deadbolt, accommodating both 60mm and 70mm backsets. The ML-X3 is compatible with door widths ranging from 35mm to 50mm. It integrates seamlessly with the TT Lock app, allowing you to manage E-keys, PIN codes, RFID cards/fobs, and fingerprints, with an audit trail recorded in the app. You can grant and control access for family, friends, clients, or tradespeople, specifying access for weeks, days, or hours, and modify or revoke access as needed. Additionally, it can be Wi-Fi enabled via the G2 gateway, allowing remote access.
Specifications
- Length of password – 4-9 Digits
- Humidity – 10%-97%RH
- Fingerprint Capacity – 100sets
- Stand-by power consumption – ≤30mA
- Lock Type – Adjustable Deadbolt 60mm/70mm
- Unlock time – 1.5s
- State current – less than 65uA
- Motor working current – less than 200mA
- IP Class – (IP65 External Lock Housing)
- Communication mode – Bluetooth 5.0 BLE and above
- Card working frequency – 13.56MHZ
- Motor working current – less than 200mA
- Low battery warning voltage – lower than 4.8V
Compatibility
- Door Thickness35-54mm
- Door TypesWooden, Aluminium, Hollow Core
Technical Specifications
- Battery Life100,000 openings, 12 months
- Unlocking MethodsBluetooth TT Lock App, PIN Code, RFID Card, Manual Key
- PlatformsTTLock, TTRenting, TTHotel
- Password Length4-9 Digits
- Environment/Temperature-20°C to 70°C
- Humidity10% to 97%
- Emergency OpeningMechanical key, USB Type-C (Power bank)
- Code Capacity300 codes
- Card Capacity1,000 cards
- Fingerprint Capacity100 sets
- Power Supply4x AA alkaline batteries
- Battery Voltage4.5V-8V
- Card Frequency13.56MHz
