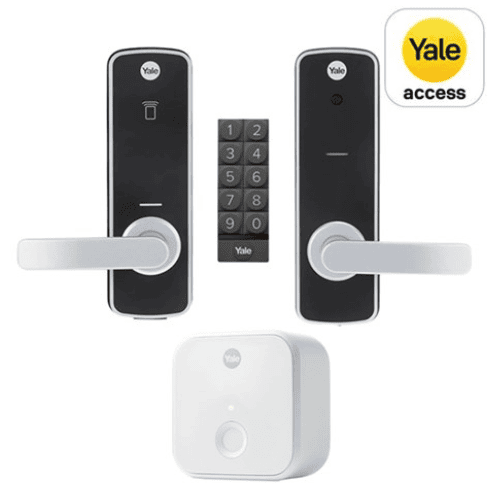

Unity Entrance Yale Lock with Connect Bridge and Keypad Silver – YUR/DEL/KIT/SIL

Designed for the Australian market, the Unity Entrance Lock features patented digital deadlocking technology, securing both internal and external handles.

It meets Australian lock standards AS4145.2:2008, SL8, and D8, ensuring top-tier security. An LED lock alert displays the mode: Unlock (Green), Locked (Yellow), or Secure (Red).

You can control the lock via the Yale Access App, key card, or Yale Smart Keypad*. The app allows remote locking, unlocking, access management, and tracking visitor entries—all from your smartphone. Grant access for a set time or date range, eliminating the risk of lost or copied keys.

Using Bluetooth, Wi-Fi, GPS, and the Yale Access App, the auto-unlock feature opens the door as you approach. The door position sensor ensures your door is securely closed before locking.

With the Yale Connect Bridge, you can remotely manage your lock, update PIN codes, and adjust settings. It also integrates with smart home systems like Google, Samsung, and Alexa, enabling voice control and automation.

Features:

• Total Control via the App
• Remote Access
• Voice Assistant Compatible
• Digital Deadlocking
• Lock Alert
• Auto Unlock
• Key Free
• Yale Smart Keypad

Specifications:

• Australian Standard: As4145.22018 / SL8 Security / D8 Durability
• Compliance: RCM- Australian Electrical Regulatory Compliant
• IP Rating: IP54
• Operating Temperature: -25-70c
• Humidity: 0-90%
• Power: 4 x AA Alkaline Batteries
• Battery Life on lock: approximately 12 months
• RFID: MiFare (2 x Contactless Key Cards)
• Finish: Silver Powdercoat with black nylon
• Use: Entry doors. Not for use on doors where the internal escutcheon is exposed to outside elements. Eg: Outdoor gate
• Backset: 60-70 mm backset (70 mm latch sold separately – Y530-2SC)
• Lock Type: 530 Latch
• Door Thickness: 35-60 mm
• Volume Settings: Mute, Low, High
• Low Battery Warning: 20%
