ML-NX5 Digital Lock
Select MLNX5 Digital Lock Options
Select Professional Installation Service
The McGrath ML-NX5 Digital Lock offers keyless security with biometric fingerprint access and 5 unlocking methods, including Bluetooth, card, and password. Designed with an ergonomic handle, it supports TTLock and other platforms, providing durable performance with a 12-month battery life. It is suitable for wooden, aluminum, and hollow core doors, with an IP66 rating for weather resistance.
For Professional Installation Service recommendations check out the terms and conditions.
$440.00
Choose Quantity
Product Details

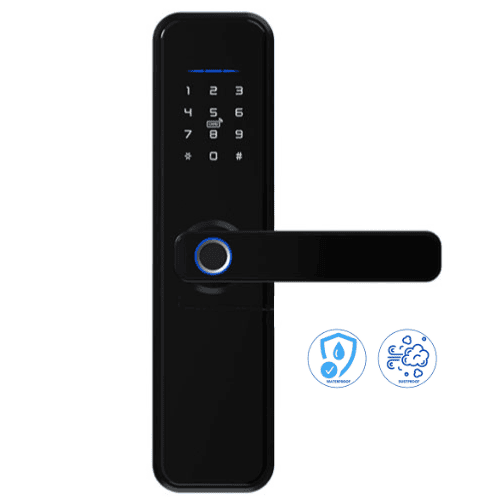

McGrath ML-NX5 Digital Lock
The McGrath ML-NX5 offers keyless electronic security with advanced biometric fingerprint technology, combining elegance and a sleek, ergonomic handle. It provides five convenient unlocking methods, including swipe card and fast fingerprint recognition.
Specifications:
- Battery Life: Tested for 100,000 openings, lasting up to 12 months
- Unlock Methods: Password, Bluetooth, Card, WiFi, Fingerprint
- Available Colours: Black, Silver
- Supported Systems: Android 4.3 / iOS 7.0 and above
- Compatible Platforms: TTLock, TTRenting, TTHotel
- Password Length: 4-8 digits
- Operating Environment: —25℃ to +60℃
- Humidity Range: 20%-95%RH
- Emergency Opening: Mechanical key
- Passage Mode: Yes
- Bluetooth Capacity: Unlimited
- Code Capacity: 100 codes
- Card Capacity: 50 cards
- Fingerprint Capacity: 100 fingerprints
- Battery Type: 4 x 1.5V AA batteries
- Standby Power Consumption: ≤30mA
- Lock Type: Mortice (McGrath Locks 60/50), Tubular latch
- Unlock Time: 1.5 seconds
- State Current: Less than 65uA
- Motor Working Current: Less than 200mA
- IP Rating: IP66 (External lock housing)
- Communication Mode: Bluetooth 5.0 BLE and above
- Card Frequency: 13.56MHz
- Battery Voltage: 6V
- Low Battery Warning: Below 4.6V
- Suitable for: Wooden, Aluminium, Hollow Core doors
- Door Thickness: Standard 38mm-55mm
- TTLock Remote Compatibility: Yes (from firmware version 6.4.09.211216 onwards)
