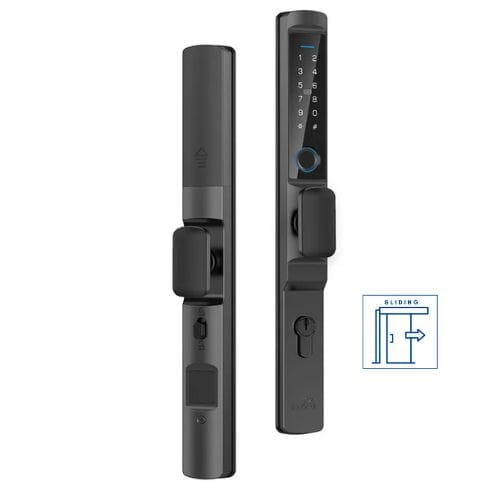

LOCKTON 'E-Series' Euro Narrow Leverset Smart Door Lock (Sliding Door)
Select Euro Narrow Leverset Smart Door Lock
Select Professional Installation Service
The LOCKTON 'E-Series' Euro Narrow Leverset Smart Door Lock is designed for sliding doors, offering secure, convenient access with fingerprint, PIN, RFID, and mobile app control. Built for durability with an IP66 rating, it includes a 6-Pin C4 key override, supports up to 300 users, and can be remotely managed with optional gateway accessories. Easy to install and manage via the TTLOCK app, it’s a versatile, sleek solution for modern security.
For Professional Installation Service recommendations check out the terms and conditions.
$398.86
Choose Quantity
Product Details
The LOCKTON 'E-Series' Narrow Leverset Smart Door Lock is designed to provide convenient entry solutions with multiple access methods: Fingerprint, Digital PIN Code, RFID Tag, and Mobile App integration.
- Optimized for Sliding Doors: The ELEV36 Smart Euro Mortice Lock features a single-throw, two-point locking system compatible with most sliding door locks.
- Built to Last in All Conditions: The external handle has an IP66 rating, suitable for installation in various environments.
- Emergency Key Override: Comes with a 6-Pin C4 Rekeyable Half Euro Cylinder, which can be modified to restricted key profiles.
- Flexible Sizing: Available in multiple backset sizes (20-45mm) to fit different installations.
- User-Friendly Installation and Operation: Step-by-step instructions make setup and daily use straightforward.
- Smartphone Control with TTLOCK App: Manage functions, add users, and issue temporary codes directly through your phone.
- Supports High User Capacity: Accommodates up to 300 users.
- Quick Fingerprint Access: Fingerprint reader is positioned for natural thumb access, enabling swift entry.
- Remote Access Options: G2 & G3 Gateway accessories (optional) allow for internet-based remote control.
- Additional Accessories: Ships with an Art. ELEV36-SLHD-SIL handle, supplied but not fitted.
Package Includes:
- 1 x ELEV36 Smart Lock Handle Set
- 1 x Art. ELEV36-SLHD-SIL Handle Set
- 2 x RFID Key Fobs
- 4 x Screw/Spindle Packs for various door thicknesses
- 4 x AAA Batteries
- 1 x Smart Euro Sliding Mortice Lock (selectable backset size)
- 1 x 6-pin C4 Half-Euro Cylinder
- 1 x Fitting Template
- 1 x Instruction Manual
Product Specifications
- Finish: Silver & Matte Black
- Dimensions (L x W): 345 x 36mm
- Pitch: 85mm
- IP Rating: 66
- Backset Range: 20 - 45mm
- Suitable Door Thickness: 28 - 50mm
- Spindle Size: 8mm
- Handle Projection: 30mm
- Handle Height: 58mm
- Handle Width: 30mm
- External Handle Protrusion: 46mm
- Power Supply: 4 x AAA Alkaline Batteries
- Battery Life: Approximately 10,000 uses
- Operating Temperature Range: -20°C to 50°C
- Warranty: 3 years (*)
With a sleek and durable design, this smart lock is a versatile and reliable solution for sliding door security.
