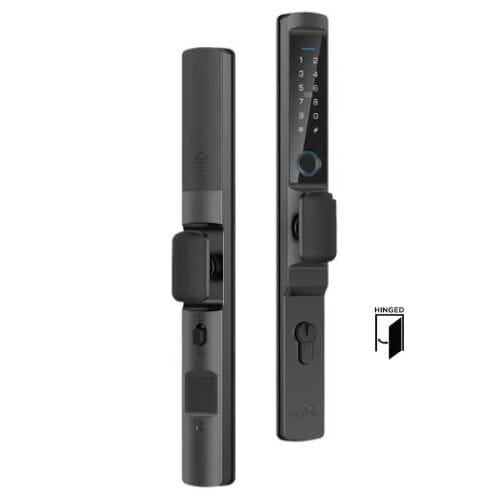

LOCKTON 'E-Series' (Euro Narrow Leverset) SMART DOOR LOCK (Hinged Door w/ KNOBS)
Select Euro Narrow Leverset Hinged Door Options
Select Professional Installation Service
The LOCKTON 'E-Series' smart door lock offers electronic access via fingerprint, digital PIN, RFID, and mobile app. Ideal for hinged doors with push/pull handles, it features double-point locking, IP66 weather resistance, a rekeyable half-Euro cylinder, and compatibility with optional G2 & G3 Gateways for remote control. Easily manage access for up to 300 users via the TTLOCK app, with a user-friendly fingerprint sensor and combined deadbolt/latch security. Suitable for various door thicknesses and available in multiple backset sizes. Includes RFID fobs, batteries, and a 3-year warranty.
For Professional Installation Service recommendations check out the terms and conditions.
$383.46
Choose Quantity
Product Details
LOCKTON 'E-Series' (Euro Narrow Leverset) SMART DOOR LOCK with Electronic Lock Functionality (Hinged Door w/ Knobs)
PRODUCT DESCRIPTION
The LOCKTON 'E-Series' Narrow Smart Door Lock combines electronic lock technology with Fingerprint, Digital PIN Code, RFID Tag, and Mobile App capabilities.
Ideal for hinged door installations where a smaller turn knob fits better than a full lever, especially with Architectural Push/Pull Handles. The ELEV36 - Smart Euro Mortice Lock features double-point locking and retrofits with existing mortice locks on the market.
- Additional Lock Faceplate and Strike Plate options available for retrofitting (see RELATED PRODUCTS)
- IP66 rating on the external handle allows versatile indoor and outdoor installation
- 6-Pin C4 Rekeyable Half Euro Cylinder Key Override, with options for restricted profiles
- Available in multiple backset sizes (25-70mm) to suit most existing installations
- Clear step-by-step installation and operation instructions
- Easily manage the lock with the TTLOCK Phone App for functions like user management, temporary code issuance, and remote unlocking
- Supports up to 300 users
- Conveniently located fingerprint sensor for natural thumbprint access
- Integrated deadbolt and latch for enhanced security with simple knob operation
- Compatible with optional G2 & G3 Gateways for internet-based remote access
Included Components:
- 1 x ELEV36 Smart Lock Handle Set
- 1 x Art. ELEV36-SLHD-SIL Set
- 2 x RFID Key Fobs
- 4 x Screw/Spindle Packs for various door thicknesses
- 4 x AAA Batteries
- 1 x Smart Euro Mortice Lock (select backset size from dropdown)
- 1 x 6-pin C4 Half-Euro Cylinder
- 1 x Fitting Template
- 1 x Instruction Manual
PRODUCT SPECIFICATIONS:
- Finish: Silver
- Dimensions (L x W): 345 x 36mm
- Pitch: 85mm
- IP Rating: 66
- Lock Backset Range: 25 - 70mm
- Door Thickness: 28 - 50mm
- Spindle Size: 8mm
- Handle Projection: 30mm
- Handle Height: 58mm
- Handle Width: 30mm
- External Handle Protrusion: 46mm
- Power Supply: 4 x AAA Alkaline Batteries
- Battery Life: Approx. 10,000 openings
- Operating Temperature: -20°C to 50°C
- Warranty: 3 Years (*)
