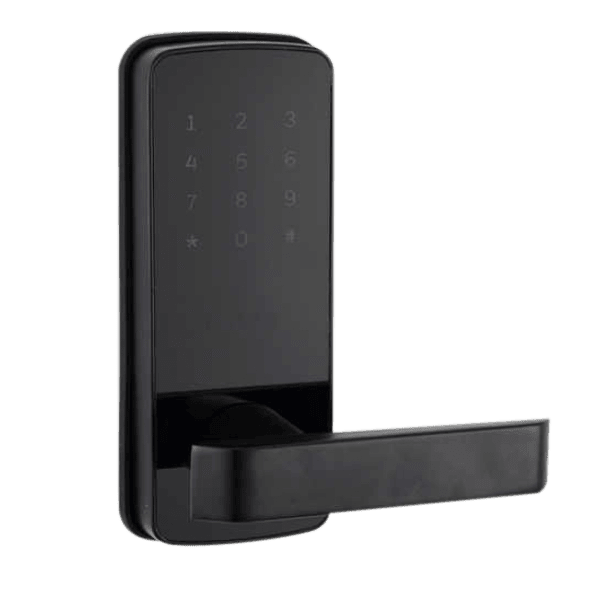

ELA DSB06 Electronic Lever

The ELA DSB06 lock is a stylish, modern choice for homes, offices, and businesses. This versatile 4-in-1 digital door lock combines sleek design with advanced security features, allowing quick access from up to 3 meters away via Bluetooth. It offers four convenient unlocking methods: Bluetooth app, PIN code, RFID card, and manual key.

For remote access, add a gateway, allowing you to control and monitor the lock from anywhere through the TTLock app. This app lets you send digital keys to friends or set timed access for maintenance workers, with a full audit trail for tracking access times and entry methods. The DSB06 is available in tubular latch and mortice versions to suit different door configurations.

Note: Please remove two layers of plastic on the keypad section before installation.

Model Variants:

• DSB06-B-T-60: Black, Tubular Latch, 60mm
• DSB06-B-T-70: Black, Tubular Latch, 70mm
• DSB06-S-T-60: Silver, Tubular Latch, 60mm
• DSB06-S-T-70: Silver, Tubular Latch, 70mm
• DSB06-B-M-60: Black, Mortice, 60mm
• DSB06-S-M-60: Silver, Mortice, 60mm

Specifications:

• Unlocking Methods: Bluetooth, PIN Code, RFID Card, Manual Key
• Material: Zinc Alloy and Acrylic Keypad
• Bluetooth Version: 4.0 BLE
• Compatibility: Android 4.3 / iOS 7.0 and above
• Unlock Time: 1.5 seconds
• Power Supply: 4 x 1.5V AA alkaline batteries
• Standby Current: ≤ 18uA
• Working Current: ≤ 200mA
• Operating Temperature: 0 - 80°C
• Operating Humidity: 15% - 95% RH
• Low Battery Alarm: Activates at <4.8V, providing 200 additional openings
• Security Feature: Five incorrect PIN entries lock the keypad for 5 minutes to prevent unauthorized access

This electronic lever offers a blend of convenience, security, and style, making it an ideal choice for modern entryways.
