Cortex CTX 3772 Mortise lock
Choose Quantity

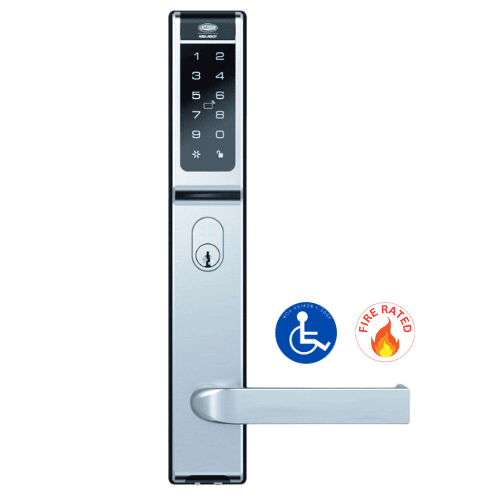

Lockwood CORTEX® Digital Door Lock Overview
The Lockwood CORTEX® Digital Door Lock is a state-of-the-art commercial-grade locking solution from ASSA ABLOY. It offers a standalone electronic access system that can easily integrate with existing security setups. Known for its innovative design and durability, CORTEX® is the first Australian digital lockset to be fire-rated for both 530 latch and Lockwood mortice versions. It ensures continuous free egress from inside, making it ideal for fire-rated door applications.
Key Features:
- Fire-Rated: Tested for up to 2 hours in accordance with Australian Standard AS1905.1-2005 (Fire Resistant Doorsets).
- Vandal Resistance: High-strength rating (SL8) and has undergone rigorous vandal testing.
- Ergonomic Lever: Ultra-smooth operation with the compliant Lever 77A, which meets the AS1428.1-2009 Disabled Accessible standard.
- Free Egress: Always allows users to exit from inside.
Specifications and Capabilities:
- Battery Life: Up to 40,000 operations with card users; 18,000 with PIN users.
- User Access: Supports 40 card users and 20 PIN code users, with the ability to easily add or delete users using the Master Code.
- Dual Credentials: Requires two users for entry – one using a PIN and the other with a card.
- Visitor Code: Allows time-limited access via a visitor-specific PIN.
- One-Time PIN: Can generate a single-use PIN that expires automatically after use.
- Time-Based Features: Full calendar support, including leap years, enabling time and date-based user preferences.
- Passage Mode: Users can toggle between standard and passage mode, and timed passage mode can be scheduled to lock or unlock doors at specific times.
Special Features for Mortice Versions:
- Code Lockout/Privacy: Cylinder lockout feature to disable electronic users when necessary (VCam required).
- Latch Holdback: For high-traffic areas, the holdback function allows doors to remain open for parts of the day (VCam and Mortice faceplate required).
Electronic Technical Information:
- Battery Type: 4 x AA Alkaline.
- Card Compatibility: iClass & Mifare formats, which work with 90% of access control systems worldwide.
- Operating Conditions: Functions between -10ºC to 65ºC and in humidity levels >85% (non-condensating).
- Emergency Features: Battery emergency PINs and smart battery low-check functions ensure uninterrupted access.
Mechanical Features:
- Compliant with AS1428.1-2009: Designed for disabled accessibility.
- Key Override: Available in Mortice versions with manual key functionality.
The Lockwood CORTEX® is a robust, highly secure, and flexible solution for commercial applications where reliable access control and fire compliance are essential.
